oscilation error

If you have something to say about LogicCircuit program or you know how to improve it please share it here.
Post Reply
themhz
Posts: 7
Joined: Tue Jan 15, 2019 4:43 am

oscilation error

Post by themhz »

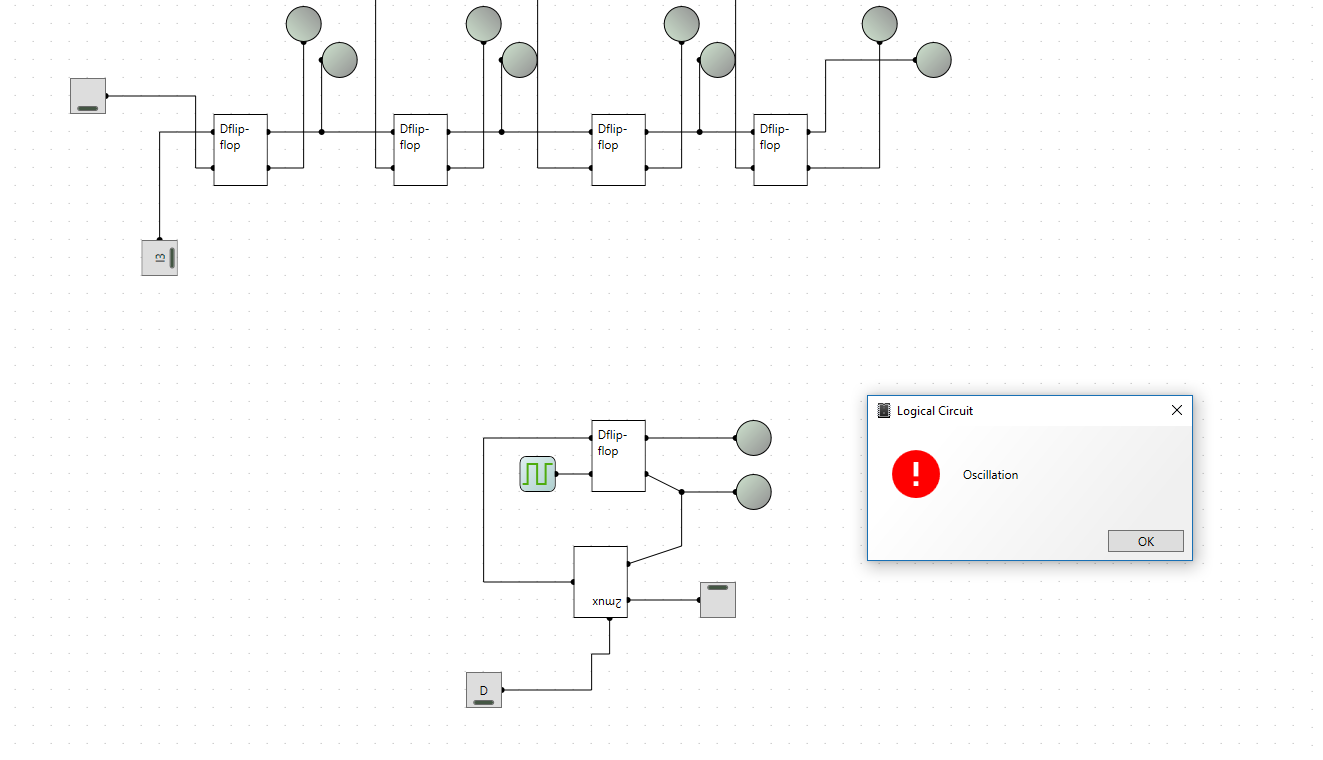

I am trying to create a shift register using D flip flop that I made but when I connect the Q output to the D I get the following error
Attachments
User avatar
admin
Site Admin
Posts: 417
Joined: Sun Jun 14, 2009 10:53 pm
Contact:

Re: oscilation error

Post by admin »

Please read this help page: https://logiccircuit.org/oscillation.html
There are other help pages available as well at: https://logiccircuit.org/help.html
