Problems with ROM

Post by chengfeng »

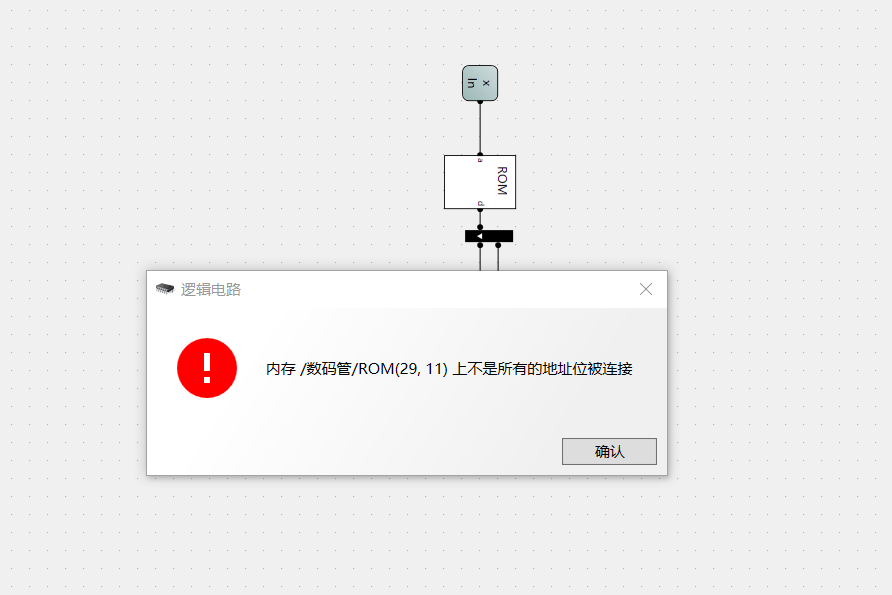

When I was conducting the simulation, it kept indicating that not all address bits on the ROM were connected. However, I have checked several times and found no connection errors. Could you please advise on how to solve this problem? I am looking forward to your reply.
Attachments
Top
User avatar
admin
Site Admin
Posts: 425
Joined: Sun Jun 14, 2009 10:53 pm
Contact:
Contact admin

Re: Problems with ROM

Post by admin »

It is hard to tell just from the picture. Can you please share your circuit file?
